Production Equipment

Juki FX1-1R High Speed Flex shooter 6 Heads (2 machines)
0201 - 1.0" component size
Vision centering

Juki KE 3020 High Speed Flex shooter 8 Heads (2 machines)
0201 - 1.5" component size
Vision centering

Juki FS750 High Speed Flex shooter 3 Heads
                                                   0402 - 1.5" component size
                                                   Vision centering
Juki FS760 High Speed Flex shooter 2 Heads (2 Machines)
                                                   0402 - 1.5" component size (incl. BGA)
                                                   Vision centering
Juki KE2020 High Speed Flex shooter 5 heads (2 Machines)
                                                   0402 - 2.0" component size (incl. BGA)
                                                   Vision centering
Juki KE2050 High Speed Flex shooter 5 heads
                                                   0201 - 2.0" component size (incl. BGA)
                                                   Vision centering
Heller 1500 - 10 zone reflow oven with kick software for profiling.
Heller 1500 - 10 zone reflow oven with edge rail for double sided assemblies
Heller 1800 - 16 zone reflow oven with edge rail for double sided assemblies
EKRA X4 In-Line automatic screen printer
DEK Horizon In-Line automatic screen printer
Surface mount technique manual screen printers (qty:7)

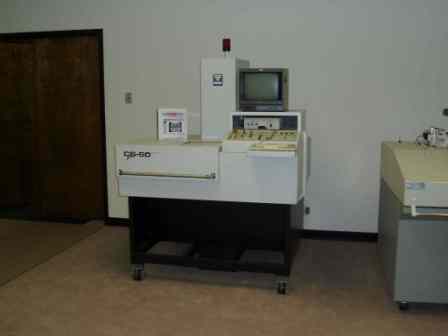

Micro Focus CS-50 BGA X-Ray Inspection System.
MIRTEC MV3 AOI Inspection system (3 Machines)
MIRTEC MV7 In-Line AOI Inspection System
Electrovert Econopak II SMT with SMT chip Wave for bottom side solder.
Electrovert Econopak II SMT with SMT for LEAD FREE solder only.
AquaKleen in-line cleaner using de-ionized water.
Q-Corp LOM-II mass lead trimmer.

A.P.E. Chipmaster SMD-1000 rework station.
Hakko temperature controlled soldering irons. (25)
Ten station push lines are designed for fast Thru-Hole assembly of your product.
3-D microscopes are used for complete inspection
of solder quality and workmanship.

BLUE-M environmental ovens (2)
